· 3 min read
Alvaro Jose

Why would I do this?

Docker-desktop is a paid product, their licensing mode is by user, and it provides value not for the software side but for their cloud offering (registry, etc). For this, if the intent of you're a company is to use containers locally to facilitate software development, the cost tends to be high.

What is podman?

Podman (short for Pod Manager) is an open-source, Linux-native tool designed to develop, manage, and run containers and container images. It offers a Docker-compatible command-line interface (CLI) that does not rely on a daemon, but directly interacts with the Image registry, container, and image storage, and container process operations.

Migration Steps

1. Clean-up Docker Desktop (Optional)

you will need to run the next bash script

#!/bin/bash

# Uninstall Script

if [ "${USER}" != "root" ]; then
echo "$0 must be run as root!"
exit 2
fi

while true; do
read -p "Remove all Docker Machine VMs? (Y/N): " yn
case $yn in
[Yy]* ) docker-machine rm -f $(docker-machine ls -q); break;;
[Nn]* ) break;;
* ) echo "Please answer yes or no."; exit 1;;
esac
done

echo "Removing Applications..."
rm -rf /Applications/Docker.app

echo "Removing docker binaries..."
rm -f /usr/local/bin/docker
rm -f /usr/local/bin/docker-machine
rm -r /usr/local/bin/docker-machine-driver*
rm -f /usr/local/bin/docker-compose

echo "Removing boot2docker.iso"
rm -rf /usr/local/share/boot2docker

echo "Forget packages"
pkgutil --forget io.docker.pkg.docker
pkgutil --forget io.docker.pkg.dockercompose
pkgutil --forget io.docker.pkg.dockermachine
pkgutil --forget io.boot2dockeriso.pkg.boot2dockeriso

echo "All Done!"

2. Install Homebrew

Homebrew is the defacto command line package manager for OSX, if you don't have it is very recommendable to have it.

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

3. Install Podman

On Mac, each Podman machine is backed by a QEMU based virtual machine. Once installed, the podman command can be run directly from the Unix shell in Terminal, where it remotely communicates with the podman service running in the Machine VM.

For Mac, Podman is provided through Homebrew. Once you have set up brew, you can use the brew install command to install Podman:

brew install podman

Next, create and start your first Podman machine:

podman machine init
podman machine start

You can then verify the installation information using:

podman info

At this point, podman should have created a proxy file in /usr/local/bin/docker, if it does not exist you will have to create it with:

sudo vim /usr/local/bin/docker

add in that file the content:

#!/bin/sh
[ -e /etc/containers/nodocker ] || \
echo "Emulate Docker CLI using podman. Create /etc/containers/nodocker to quiet msg." >&2
exec podman "$@"

the script needs to be made executable by:

chmod +x /usr/local/bin/docker

you should now be able to run a docker as normal

docker run -it docker.io/hello-world

4. Use podman-mac-help

You should consider using podman-mac-help to migrate transparently to Podman on macOS.

  • Continue using familiar Docker commands.
  • Take advantage of the benefits of Podman on macOS.
  • Your tools, such as Maven or Testcontainers, communicate with Podman without reconfiguration.

The podman-mac-helper tool provides a compatibility layer that allows you to use most Docker commands with Podman on macOS. The service redirects /var/run/docker to the fixed user-assigned UNIX socket location.

To enable this, you just need to run:

sudo podman-mac-helper install

5. Install Podman Desktop (Optional)

Finally, to have a better compatibility and a UI to work with as with docker desktop, you can install Podman desktopby running:

brew install podman-desktop

· One min read
Alvaro Jose

Welcome to our Continuous Delivery Bootcamp! We'll teach you the skills you need to get your projects out the door fast, without sacrificing quality. By the end of this program, you'll be a pro at transforming code into working software. Sign up today and start transforming your workflow!

This chapter we will do an example on how to build and validate our project in github actions.

Video

{% embed https://youtu.be/QMwXxezykHc %}

Watch the video on Youtube

· One min read
Alvaro Jose

Welcome to our Continuous Delivery Bootcamp! We'll teach you the skills you need to get your projects out the door fast, without sacrificing quality. By the end of this program, you'll be a pro at transforming code into working software. Sign up today and start transforming your workflow!

This chapter we will do an intro on the tools we will use and how to commit code with git and GitHub works

Video

{% embed https://youtu.be/nwpUtvHulWM %}

Watch the video on Youtube

· One min read
Alvaro Jose

Welcome to our Continuous Delivery Bootcamp! We'll teach you the skills you need to get your projects out the door fast, without sacrificing quality. By the end of this program, you'll be a pro at transforming code into working software. Sign up today and start transforming your workflow!

This chapter we will do an iteration writing test, doing test driven development not only as a testing tool but also as a design tool.

Video

{% embed https://youtu.be/MG-Uqve41BQ %}

Watch the video on Youtube

· 2 min read
Alvaro Jose

As we develop a product over time, changes need to be made as we need to accommodate new functionality. As most of our systems don't run isolated, and we have clients that used them (ex. public API), We have to keep compatibility at least on a temporary basis. How do we achieve this?

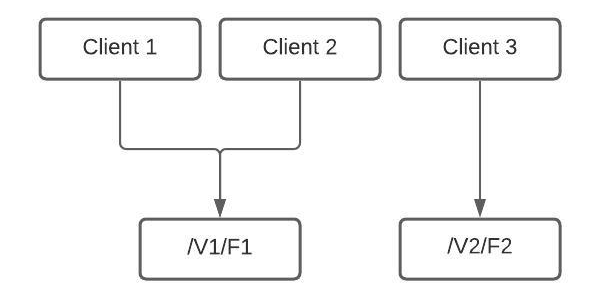

Versions

A common practice is to have different versions for the multiple clients. While simple, it also requires significant effort to maintain as whenever an issue or bug is spotted, multiple places are affected, meaning there are more possibility of side effects.
It also makes it more difficult to make a case for clients to migrate from one to the other due to the contract changes.

This affect mostly negatively the next DORA 4 metrics:

  • Lead Time for change

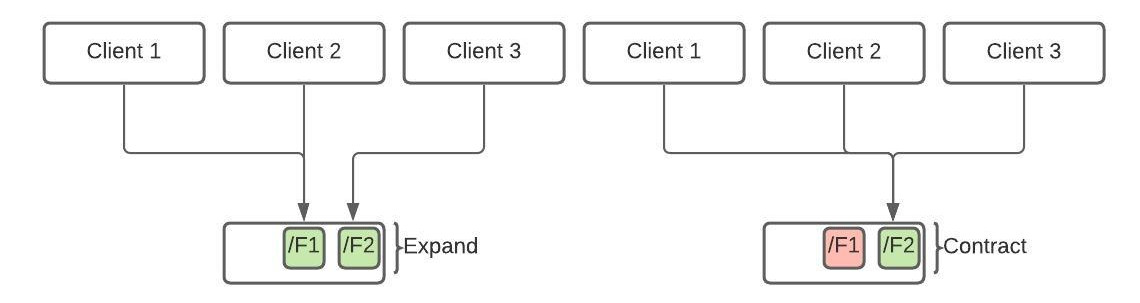

Versionless: Expand & Contract

As the name says, this strategy intents to have only one state of truth and not a multitude of them. Versionless has been heavily adopted as a principle by GraphQL, for example.
We can achieve this in any code base by implementing a strategy for parallel changes called Expand & Contract, it's call this way due to the phases code goes through. Let's see for example we want to migrate from using one field value to a similar field with a more complex representation.

  • Expand: We add the new 'field' to the existing contract, and add the code to support this strategy on the existing code.
  • Contract: We monitor the usage of the old 'field' to understand when it is possible to deprecate, at that point we remove the old code.

With this, we have a clean source code that we can evolve indefinitely as required by the business.

This affect the next DORA 4 metrics:

  • ✔️ Lead Time for change

· 3 min read
Alvaro Jose

I have already written some other post on this topic. I will go straight to the point on comparing Git Flow (a legacy strategy that most companies use) and Trunk-Based Development.

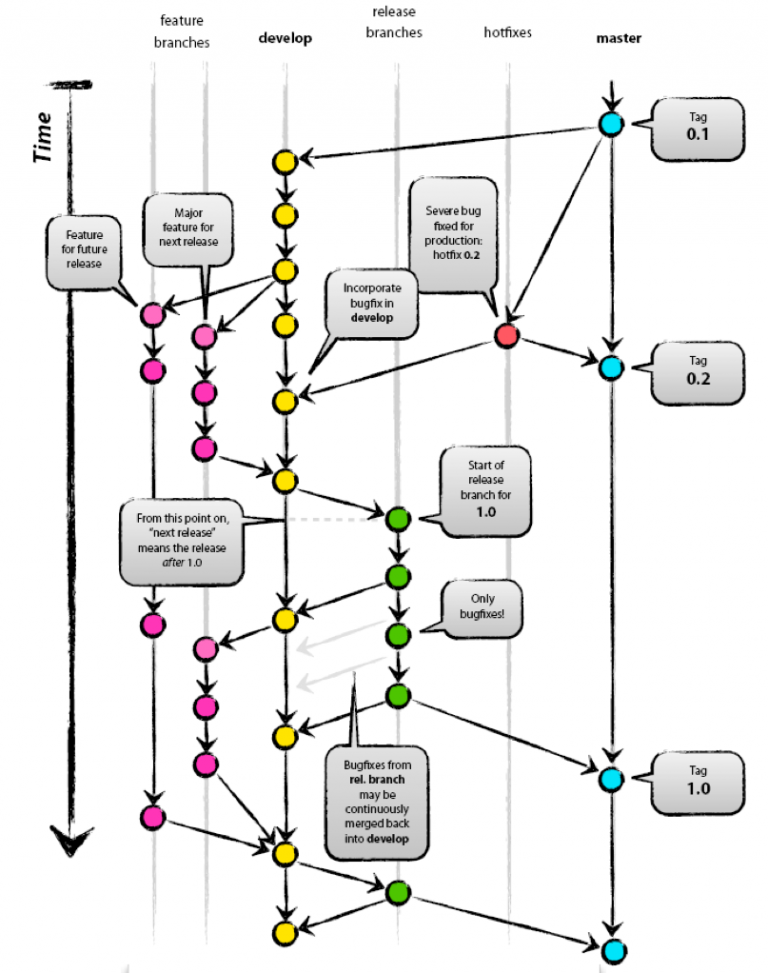

Gitflow: The Bad & The Ugly

Why do I call it the bad and the ugly? Because it does not allow you to achieve Continuous Deployment.
The idea is that every developer works isolated on their branch, validate on their branch and ask through a merge request to add their code to the X stage branch.


There are multiple issues with this:

  • Code does not exist isolated, we don't deploy isolated code, so the isolated test is not valid as it will require retesting.
  • The peer review process happens at the end, causing a very slow feedback loop. Having to rewrite code that could be avoided.
  • The more time the branch lives, the more it diverges from the original behavior and the more complex it is to merge.
  • Merging can cause complex conflicts that require revalidation, and it might have side effect in other features.
  • As there needs to be validations of the merges, it's normal to have multiple environments that give a false sense of security, increases the $ cost and increases the lead time.
  • Egos and preferences become part of the review process, as it has become an 'accepted' practice that the 'experts' or 'leads' do the reviews.

All of this is red tape to go through is a problem that makes delivery slower, and create a lack of ownership mentality farther away from what happen to the individual branch.

This affects mostly negatively, most of DORA 4 metrics:

  • Deployment frequency
  • Lead Time for change
  • Mean Time To Recovery

Is there a simpler and better way to collaborate on code way?

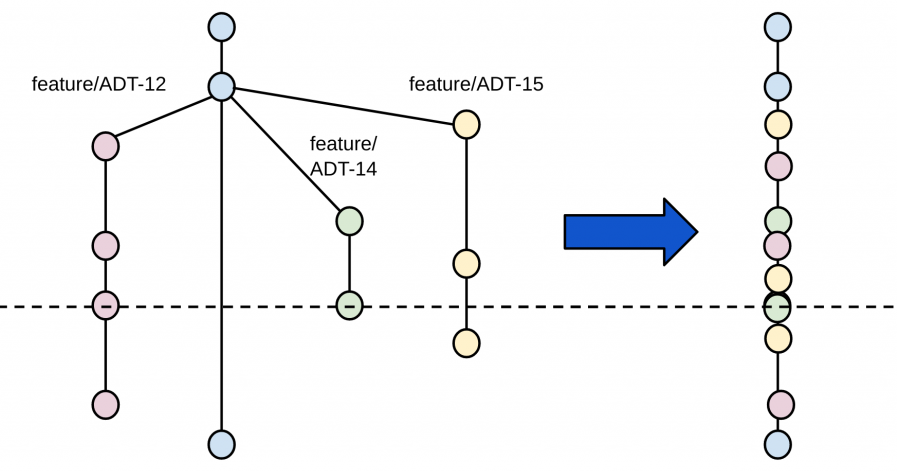

Trunk-Based Development: The Good

What happens if we all commit to the same branch.

Most of the expressed issues are solved, in this scenario by:

  • Code is never isolated, as we all push code to the same place.
  • Teams that do this practices also practice pair programming, making the peer review process is continuous and synchronous.
  • As individuals push multiple times a day, merge conflicts are non-existent or small.
  • Does not require revalidation, as validation is a continuous stream in the single environment.
  • No ego environment tent to appear as there is no centralize approver of code, so it's not a matter of preference but a team effort and ownership.

As we have seen before, having unfinished code does not need to affect users, as it is common practice to use feature flags and/or branching by abstraction.

This affect the next DORA 4 metrics:

  • ✔️ Deployment frequency
  • ✔️ Lead Time for change
  • ✔️ Mean Time To Recovery

Conclusion

Simplicity is king. Having a simpler structure enables speed and quality of delivery, as it allow teams to work closely, take shared ownership and act faster related to a smaller change.

· 2 min read
Alvaro Jose

Before we enable code for our clients, we need to test and validate it does what is expected. This could be an entire series of its own (please let me know if you want one), so I will keep it on a high level.

Testing

I could probably spend hours sharing different types of testing strategies and where and why to use them.
In reality, the most important thing, is to make sure we use the correct ratio of the different types of tests, as it will highly affect the time and location of your testing.

This ratio has always been shown as a pyramid with:

  • Unit test: validate individual pieces of logic that are isolated.
  • Integration test: validates interactions with multiple parts of your system or other systems.
  • Integrated test: They test the system as a whole.

Tests are divided in these layers because there is a cost in time and complexity.

This affect the next DORA 4 metrics:

  • ✔️ Change Failure Rate

Validation

Validation differs from testing as it's the confirmation that the behavior is what the user expected, for now, humans are the only ones that can discern this.
As we have seen in the previous chapter, the recommendation is to do this in production, so you get:

  • Get real behaviors of interactions with other systems
  • Get real performance

This affect the next DORA 4 metrics:

  • ✔️ Change Failure Rate

· 3 min read
Alvaro Jose

Now that we know where our code lives, we need to make sure our users get access to the features. For this, we need to get our code to the environment we want to deploy to, and control the rollout (if you are not a big bang release fan).

Blue/Green Deployment: Getting to prod with 0 downtime

What is this?, The concept is simple, we have a set of machines (ex. blue) where we currently have our app running, and we want to deploy. The intent is to create a new set of machines (ex. green) where our new version of the code will run. We would like to validate as much as possible (ex. automated e2e tests) that this new version is up to par with the previous one before moving the traffic and destroy the previous version.

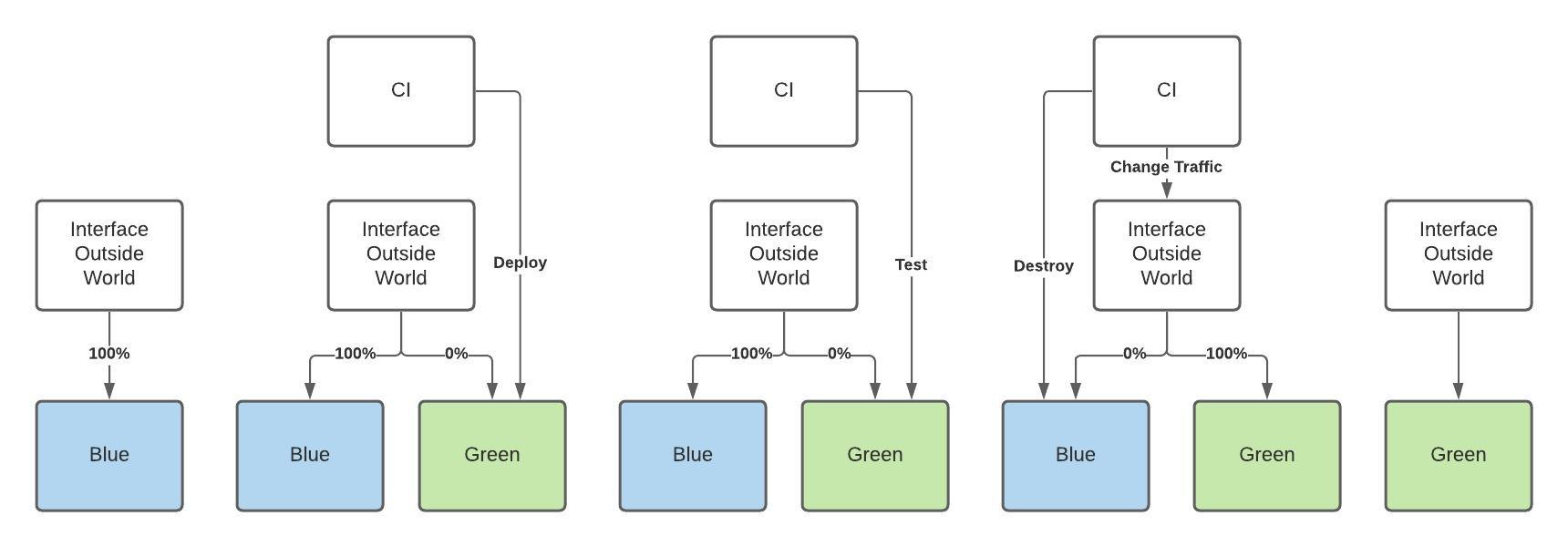

You can see the process in the next graph:

With this, we are trying to achieve a 0 downtime while deploying a new version of our code. This is critical for teams that practice continuous deployment, as you want to avoid having systems down as you deploy multiple times a day.

Enabling feature access to users

there are multiple ways to enable access to users, in between them:

Big Bang Releases

This is the plug and pray solution. Pushing the code and expecting it to work as it's enabled for all users. This is a very dangerous strategy as your blast radius is all your users.

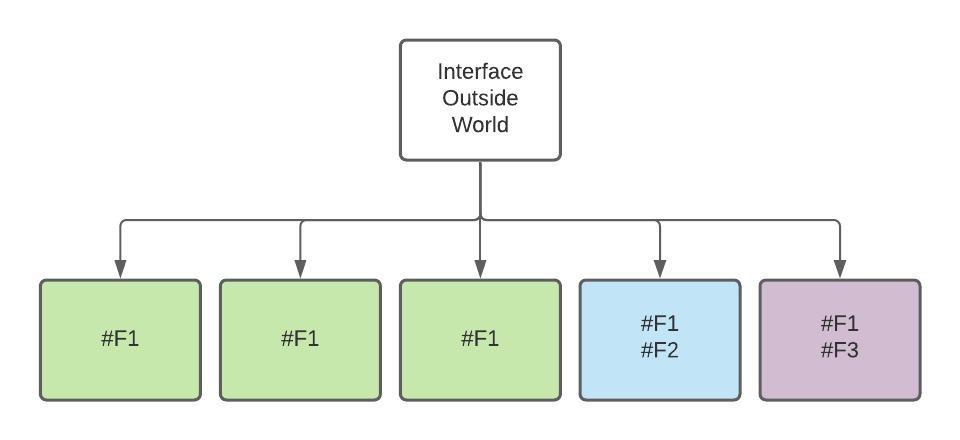

Canary Releases

This is a practice that comes from the mining industry, The idea was the next one:

If a canary is in the same place where humans are inside the mine, when there is a problem with the breathable air it will be the first one to perish.

If we translate this to software, the idea is to have deployed the changes only to one or a few servers. With this, we can monitor this canary instances and act if any issue happens, we reduce the blast radius of issues to only the users who go through that server.

This affect the next DORA 4 metrics:

  • ✔️ Change Failure Rate

This approach provides us a way to reduce the blast radius from a big bang release. Nevertheless, it does not help us to prevent or act faster upon a bug in our code.

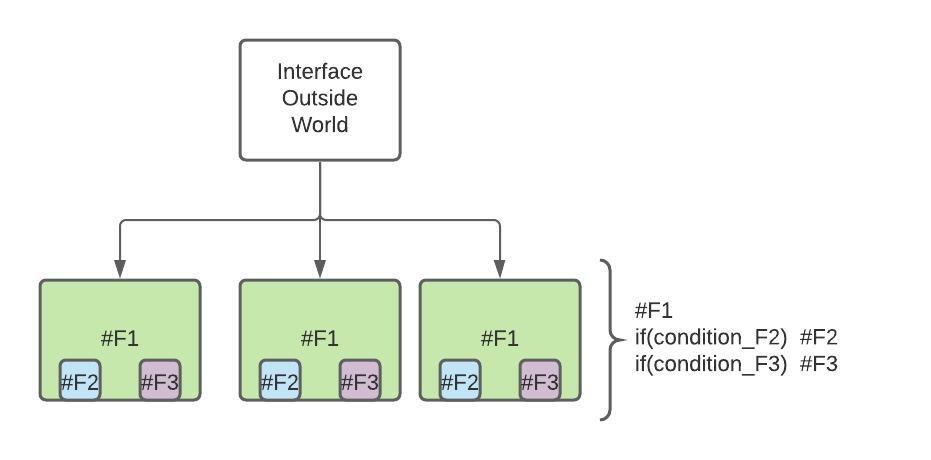

Feature Flag Releases

To improve upon the canary release strategy, we can move towards feature flags.

Feature Flags are hiding our code behind a 'flag' this can help decide if the code is enabled or disabled, as in the next image.

There are a multitude of services, libraries & SDKs that allow you to create flags in your code. They help by:

  • Decouple activation of features from the release pipeline.
  • Solving incidents in a matter of seconds.
  • Do a controlled rollout. For example:
    • Enable only for team.
    • Enable for X% of the traffic.
    • Enable for users in a specific country.

This affect the next DORA 4 metrics:

  • ✔️ Deployment frequency
  • ✔️ Mean Time To Recovery
  • ✔️ Change Failure Rate

· 3 min read
Alvaro Jose

Our services need to run somewhere, so our users can access it. It's a very common practices to have multiple environments like dev, staging, and prod. Is this actually a good practices?

CI vs. CD vs. CD

when people talk about continuous integration, delivery and deployment, they normally talk about it as a whole.

Nevertheless, let's reflect why these are 3 different practices. As they are steps in a journey, you can do one and not the next one.

  • Continuous integration: allows making reproducible states of the code in multiple places.
  • Continuous Delivery: Now that it's reproducible, it needs to be marked as potentially deployable and provide the ability to deploy it.
  • Continuous Deployment: Delivers the code to your clients and not only to your team as you commit.

The trap of Multiple Environments

As you can imagine, with the previous definition of CI/CD, having multiple environments will never allow you to achieve Continuous Deployment.

The intent of having multiple environments is to reduce change failure rate, are we actually achieving this with the practices? The answer is normally not due to:

  • A non-production environment will never be the same as a production.
    • Different data
    • Different performance
    • Different security practices
    • Etc…
  • Stress and ownership of moving things to production
  • Accumulation of code in lower environments (meaning more bugs).
  • Longer feedback loop.
  • Continuous misalignment due to development cycles in between different teams.

As you can see, this makes a fake sense of safety, but it does not affect positively the change failure rate.

This affects mostly negatively, most of DORA 4 metrics:

  • Deployment frequency
  • Lead Time for change
  • Mean Time To Recovery
  • 〰️ Change Failure Rate

Achieving Continuous Deployment, Only prod, is it so crazy?

How can a team Continuous deployment? The answer tends to be simple, making every commit go to production and testing in it.
Be aware this does not mean to have our users experience possible bugs or see test data, as we can hide functionalities behind toggles, headers, or parameters that allow access to only the development team. As we will see in future installments of this series.

An example strategy is the one in the next diagram.

This allows us to keep only one environment that discriminates in between test and non-test data that can be clean periodically, while it provides the real environment with the real behavior. With this, we solved:

  • Real performance & behavior.
  • Continuous alignment with other teams.
  • Smaller feedback cycles.
  • Control of rollout.
  • Smaller $ cost.

This affect the next DORA 4 metrics:

  • ✔️ Deployment frequency
  • ✔️ Lead Time for change
  • ✔️ Mean Time To Recovery
  • 〰️ Change Failure Rate

Conclusion

There is no one size fit all, but modern practices tend to go towards simplicity and fast feedback loops. There are many practices involved on this simplicity that enables us to feel comfortable with only production environments. We will talk about them on this series.

· 3 min read
Alvaro Jose

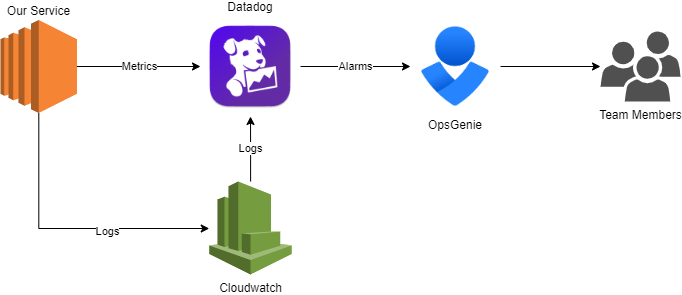

When we talk about observability, we talk about:

Capability of developers to understand the health and status of their application.

We don't want users or clients to be the ones noticing something is wrong. For this, there are multiple tools that fall under the observability category.

Tools

Alarms

This is the first line of defense against issues, the intent is to get notified if any potential issue arises.
The intent of this is to provide a notification if any parameter of our application is out of range (ex. to many 5xx).

This allows us to use our mental bandwidth to focus in creating value and not continuously check if the parameters are in range.

This affect the next DORA 4 metrics:

  • ✔️ Mean Time To Recovery

Metrics

As the name says, this is a set of measurements we track from our code, it allows us to understand the health of individual parts of our system.

This metrics are shown in dashboards that allow us to visually understand what is happening. We can divide metrics dashboards in 2 types:

  • Status: It will give us a really fast overview of the health of the system.
  • Details: It will not tell us what is wrong, but will provide more detailed information to dig deeper into a specific area.

It's important to not mix this 2 together, as they have different purposes. Like with alarms, it helps focus our mental bandwidth in the correct place.

As you see in the previous image, the left represents a detail dashboard that makes it difficult to know on a single view if there is an issue. For this, as in the image on the right, we have a status dashboard that in a single glance we can spot where to look next.

This affect the next DORA 4 metrics:

  • ✔️ Mean Time To Recovery

Logs

This is the lower level you want to go. It should tell you where in the code is your issue, so you can go and fix it.

When thinking about logging, it is significant not log everything. Due to the added noise that this can bring.

This affect the next DORA 4 metrics:

  • ✔️ Mean Time To Recovery

Example

let's get practical on how would this work.

  • Implement your service
  • Create metrics and send them to your metrics system (ex. Datadog, Grafana)
  • Create logs and send them to your logging system (ex. Datadog, Kibana, CloudWatch).
  • Create dashboards:
    • Single Status dashboard. Use only simple boxes with green and red backgrounds that represent in one view the health of your system & subsystems.
    • Multiple Detail dashboards. Create a dashboard for each subsystem with as much data as necessary to understand where the issue is, so you can later pinpoint the root cause in your logs.
  • Create alarms based on the status dashboard boxes.
  • Connect your notification system (ex. Opsgenie, PagerDuty, Slack channel) to the created alarms, so you get push notifications as something goes wrong.
